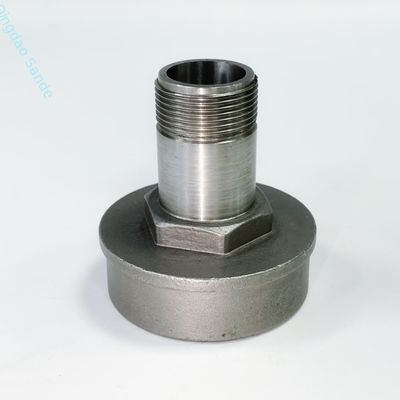

Precision CNC Machined Stainless Steel Necked Flanges (10-500mm)

MOQ:	1000
Price:	$0.5-2
Standard Packaging:	Wooden box
Delivery Period:	30 days
Payment Method:	D/P,T/T,Western Union
Supply Capacity:	10000PCS/month

Details Information

Product Description

Detail Information

Place of Origin

Qingdao, China

Brand Name

Qingdao Sande Tech Co.,Ltd

Certification

ISO, DIN, AISI, ASTM, BS, JIS, etc.

Model Number

OEM

Applicastion:

Machinery Metal Parts

Drw Format:

PDF/DWG/IGS/STP/ Etc

Strength:

High Strength

Type:

Machining Parts

Tolerance:

±0.01mm

Materials:

Hot Dip Galvanized Steel

Value:

ISO 9001

Surface Treatment:

Anodizing

Highlight:

CNC machined stainless steel flanges

precision necked flanges 10-500mm

stainless steel machining parts

Product Description

Precision CNC Machined Stainless Steel Necked Flanges (10-500mm)

Product Attributes

Attribute	Value
Application	machinery metal parts
Drw Format	PDF/DWG/IGS/STP/ etc
Strength	high strength
Type	Machining Parts
Tolerance	±0.01mm
Materials	Hot dip galvanized steel
Value	ISO 9001
Surface Treatment	Anodizing

Product Overview

Our high-precision CNC machined necked flanges and internal thread components are engineered for exceptional performance in demanding industrial applications. Manufactured using advanced CNC turning and milling processes, these components deliver exacting tolerances and reliable functionality.

Key Features

Premium Materials: Available in stainless steel (304/316), carbon steel, and alloy steel
Precision Manufacturing: Tight tolerances to ±0.05mm with Ra 0.8-3.2μm surface finishes
Durable Construction: Heat-treated options available for enhanced wear resistance
Custom Solutions: Tailored dimensions, thread specifications (metric/UN/BSW), and special coatings

Technical Specifications

Diameter Range: 10mm to 500mm
Pressure Rating: Up to 6000 PSI (varies by material)
Temperature Range: -50°C to 800°C
Thread Standards: ISO, ANSI, DIN, or custom profiles

Applications

Hydraulic and pneumatic systems
Power generation equipment
Oil & gas pipelines
Heavy machinery and automotive assemblies

Quality Assurance

100% dimensional inspection
Material traceability documentation
ISO 9001 certified production

Precision CNC Machined Components - Technical Specifications

Parameter	Necked Flanges	Internal Thread Components
Material Grades	304/316 Stainless Steel, Carbon Steel, Alloy Steel	Same as flanges + Brass
Size Range	OD: 10-500mm, ID: 8-450mm	M3-M120 threads, 5-400mm length
Wall Thickness	2-50mm (±0.1mm)	1.5-30mm (±0.05mm)
Tolerance	±0.05mm (standard), ±0.02mm (precision)	±0.03mm (standard), ±0.01mm (precision)
Pressure Rating	Up to 6000 PSI (dependent on material)	1000-10000 PSI (thread dependent)
Thread Standards	N/A	Metric, UN, BSW, NPT, BSPP, BSPT
Surface Finish	Ra 0.8-3.2μm (standard)	Ra 0.8-1.6μm (thread surfaces)
Heat Treatment	Annealed, Quenched & Tempered options	Stress-relieving available
Temperature Range	-50°C to 800°C	-50°C to 650°C (thread dependent)
Certifications	ISO 9001, PED, ASME (on request)	ISO 9001, DIN/ANSI thread standards
Additional Features	Weld preps, Grooves, Counterbores	Thread locking features, Chamfers

Frequently Asked Questions

Q1: What materials do you typically use for these components?

A: We primarily machine:

Stainless Steel (304, 316, 316L)
Carbon Steel (1018, 1045, 4140)
Alloy Steel
Brass (for threaded components)

Special materials available upon request.

Q2: What tolerances can you maintain?

A: Our standard capabilities:

Standard: ±0.05mm
Precision: ±0.02mm
Ultra-precision: ±0.01mm (additional cost applies)

Tighter tolerances possible for critical dimensions.

Q3: Can you work with our custom designs?

A: Absolutely. We specialize in:

Custom drawings/specifications
Reverse engineering
Design for manufacturability advice
Prototype development

Q4: What thread standards do you support?

A: We machine all major standards:

Metric (M)
Unified (UNC/UNF)
British (BSW/BSF)
Pipe threads (NPT/NPTF, BSPP/BSPT)
Special threads to customer specs

Q5: How do you ensure quality?

A: Our quality process includes:

100% dimensional inspection
Material certification (MTR)
Surface finish verification
First article inspection reports
ISO 9001 certified processes

Q6: What surface finishes are available?

A: Standard options:

As-machined (Ra 3.2μm)
Fine machined (Ra 1.6μm)
Precision finish (Ra 0.8μm)

Special finishes:

Electropolishing
Bead blasting
Passivation

Q7: What's your typical lead time?

A: Production runs: 4-6 weeks

Expedited services available.

Q8: What industries do you serve?

A: Our components are used in:

Oil & gas
Aerospace
Hydraulics/pneumatics
Power generation
Semiconductor
Medical equipment
